Magic Chef Dehydrator 469 1 Manual

If you own a Magic Chef 469 1 food dehydrator and need a practical guide to get the most out of it, you’re in the right place. This comprehensive manual covers everything from initial setup to troubleshooting, giving you the confidence to start drying fruits, vegetables, jerky, and more at home.

Quick Overview of the Magic Chef 469 1 Dehydrator

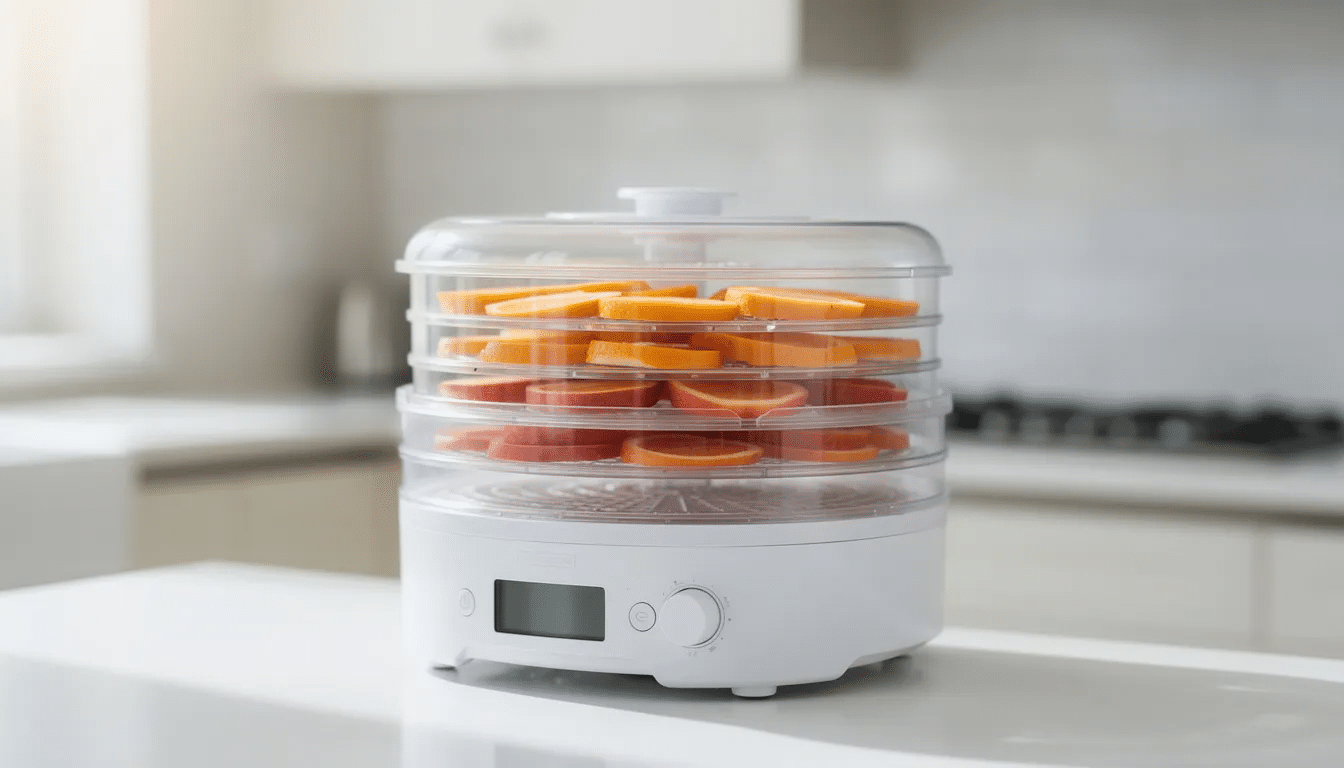

The Magic Chef 469 1 is a countertop food dehydrator featuring a multi-tray stackable system designed for home food preservation. This compact unit measures approximately 34.29 x 21.84 x 40.39 cm (13.5 x 8.6 x 15.9 inches) and weighs around 3.27 kg (7.2 lbs), making it easy to store when not in use.

Its primary purpose is removing moisture from fruits, vegetables, herbs, and meats to extend shelf life and create healthy snacks. The dehydration process inhibits bacterial growth by creating low-water-activity environments where microorganisms cannot thrive.

This article works as a practical, plain-language manual and usage guide for the Magic Chef 469 1 model. The model name may appear as “Magic Chef Dehydrator 469 1” on packaging, product stickers, or the electrical rating plate.

Throughout this guide, you’ll find information organized into:

• Setup and first-time preparation
• Controls and operating instructions
• Drying charts by food type
• Cleaning and maintenance procedures
• Troubleshooting common issues
• Safety warnings and support contacts

Specifications and Parts Identification

Before diving into operation, confirm you have the 469 1 model by matching these specifications and parts against your unit.

Key Specifications:

• Voltage: 110V or 120V AC (varies by region)
• Frequency: 60 Hz
• Wattage: Estimated 250-400W (some related models rated at 800W)
• Number of trays: 5 stackable transparent trays
• Airflow type: Horizontal convective airflow via integrated fan
• Temperature operation: Fixed-heat circulation (no adjustable dial on base 469 1 model)

Main Components:

• Base unit housing the heating element and fan motor
• Five clear stackable drying trays for visibility monitoring
• Domed lid or top cover to trap heat and allow moisture escape
• Simple on/off power switch
• Power cord for standard household outlet connection
• Included fruit roll-up sheet for making fruit leathers

The model number and electrical rating plate are typically located on the underside of the base unit or on the back housing. Check this label to verify you have the correct model before proceeding.

Safety Information and Important Warnings

Read all safety information before first use of your Magic Chef dehydrator.

Electrical Safety:

• Plug directly into a wall outlet—avoid extension cords where possible
• Do not use if the power cord appears damaged, frayed, or cracked
• Keep the unit away from water, sinks, and wet surfaces
• Never immerse the base unit in water or any liquid
• Unplug the unit when not in use and before cleaning

Fire and Heat Safety:

• Place on a stable, heat-resistant surface only
• Maintain at least 15 cm (6 inches) clearance around all air vents
• Never cover the unit while operating
• Keep away from curtains, paper products, and other flammable materials
• Do not operate near stovetops or open flames; be aware of potential dehydrator fire risks and prevention tips

Burn Prevention:

• The exterior housing and trays become hot during operation
• Use oven mitts or heat-resistant gloves when handling
• Allow the unit to cool completely before cleaning or storing

Food Safety:

• Never dehydrate spoiled or questionable food
• Follow recommended internal temperatures for meat and jerky preparation
• Refrigerate or freeze high-risk dehydrated items if needed
• Under-dehydration can lead to foodborne illness

Child Safety:

• Keep out of reach of children during operation
• Never allow children to operate the dehydrator unsupervised
• The unit poses burn and electrical hazards to unsupervised minors

Getting Started: Unboxing and First-Time Setup

This section covers the initial preparation steps before running your first batch of food through the Magic Chef 469 1.

Unboxing Steps:

• Remove all packaging materials, plastic wraps, and foam inserts
• Peel off any protective stickers from trays, lid, and base
• Verify all five trays, the lid, and any included accessories are present
• Inspect all components for shipping damage before proceeding

Placement Guidelines:

• Position on a level countertop away from sinks and stovetops
• Maintain at least 15 cm (6 inches) clearance on all sides
• Avoid placing near walls or cabinets that could block ventilation
• Choose a location where you can leave the unit undisturbed for hours

Pre-Use Cleaning:

• Wash all removable trays and the lid in warm soapy water
• Use a soft sponge—avoid abrasive scrubbers that could scratch surfaces
• Wipe the base unit exterior with a slightly damp cloth only
• Dry all components thoroughly before assembly

Initial Burn-In Cycle:

• Assemble the empty unit with all trays stacked and lid secured
• Run for 30-60 minutes to burn off any manufacturing residues
• Ensure your kitchen is well-ventilated during this process
• A slight odor is normal during the first run and should dissipate

Controls, Settings, and How to Use the Dehydrator

This section covers day-to-day operation of your Magic Chef 469 1 dehydrator.

Control Layout:

The 469 1 model features a simple on/off switch rather than adjustable temperature dials or digital displays. This fixed-heat design makes operation straightforward but requires some attention to timing and tray rotation for optimal results.

Basic Operating Sequence:

• Prepare and load food onto trays (detailed in next section)
• Stack trays on the base unit, ensuring proper alignment
• Place the lid securely on top
• Plug into a wall outlet and flip the on/off switch to start
• Monitor progress through the transparent trays

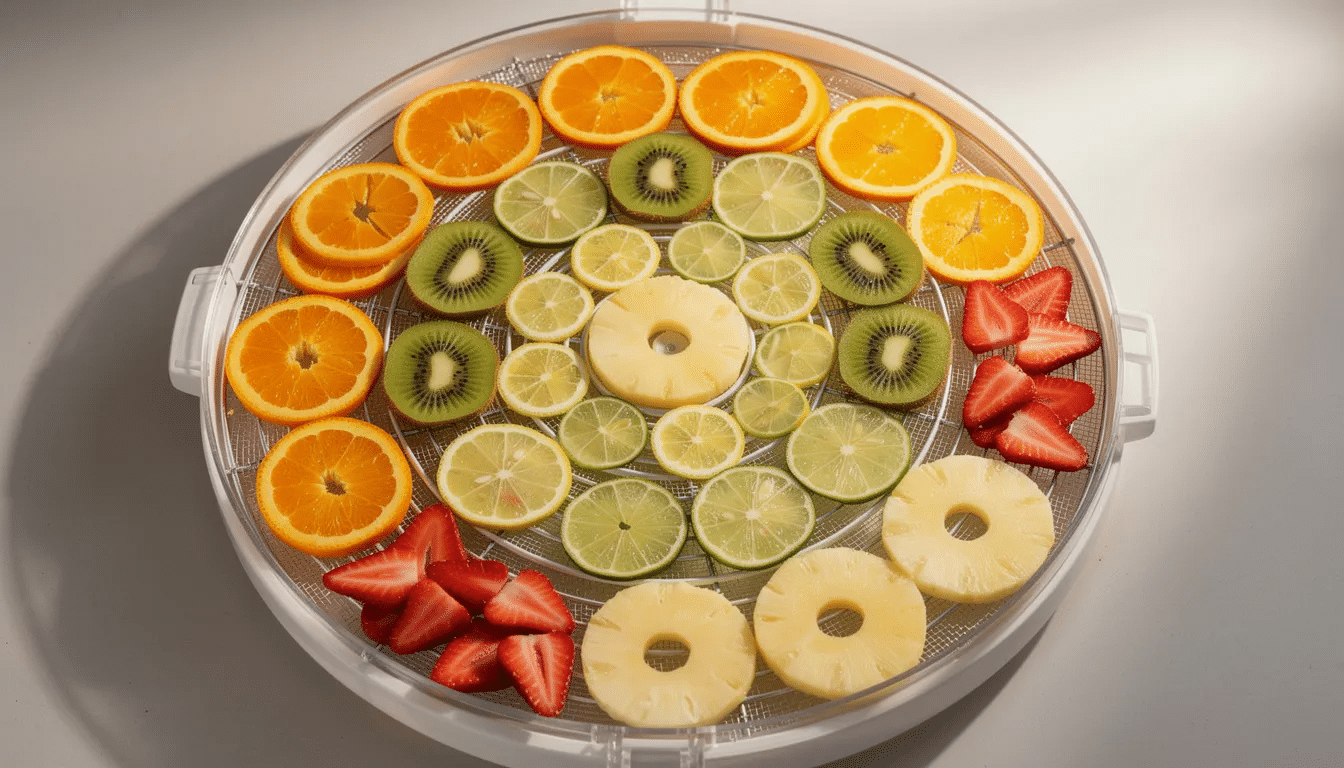

Food Arrangement Tips:

• Spread food in a single layer on each tray
• Leave space between pieces for adequate airflow
• Avoid overlapping slices, which causes uneven drying
• Smaller items should not fall through tray openings

During Operation:

• Rotate trays every 2-3 hours for more even results
• This is especially important in vertical stackable designs
• You can briefly remove the lid to check dryness and then resume
• Expect the unit to run for several hours depending on food type, especially when dehydrating fruits and vegetables in a food dehydrator

Finishing Up:

• Turn off the unit when food reaches desired dryness
• Unplug from the outlet before handling trays
• Allow cooling before removing food or cleaning

Recommended Temperatures and Drying Times by Food Type

These guidelines apply to the Magic Chef 469 1 and similar home dehydrators. Since this model operates at a fixed temperature, times may need adjustment based on your specific conditions.

Fruits (Apples, Bananas, Berries):

• Temperature range: 130-140°F (54-60°C)
• Drying time: 4-12 hours depending on slice thickness and fruit type
• Doneness: Leathery and pliable without stickiness; no moisture pockets

Vegetables (Tomatoes, Bell Peppers, Carrots):

• Temperature range: 125-135°F (52-57°C)
• Drying time: 6-14 hours
• Doneness: Brittle or crisp; should snap when bent

Herbs and Leafy Greens:

• Temperature range: 95-105°F (35-41°C)
• Drying time: 2-4 hours
• Doneness: Crumbles easily between fingers

Meat and Jerky:

• Temperature range: 155-160°F (68-71°C)
• Drying time: 6-12 hours (actual beef jerky dehydration time can vary based on thickness and prep)
• Doneness: Firm, bends without breaking, no raw spots

Important Variables:

• Slice thickness significantly affects drying time
• Higher ambient humidity can extend times by 20-50%
• Heavily loaded trays dry slower than lightly loaded ones
• Rotate trays periodically for consistent results

Food Preparation and Loading Tips

Proper preparation dramatically improves drying results and final texture. Many people love the convenience of home-dried snacks, and good prep makes the difference between great results and disappointing ones.

Washing and Trimming:

• Rinse all produce thoroughly under clean running water
• Remove bruised spots, soft areas, and blemishes
• Core apples, pit stone fruits, and remove stems
• Trim tough ends from vegetables

Slicing Guidelines:

• Cut pieces to uniform thickness for even dehydration
• Aim for approximately 1/4 inch (0.6 cm) for most fruits
• Consistency matters more than exact measurements
• Use a mandoline slicer for professional-level uniformity

Pretreatment Options:

• Blanch vegetables briefly in boiling water to preserve color and nutrients
• Dip light-colored fruits (apples, pears, bananas) in lemon juice solution
• Ascorbic acid solutions reduce enzymatic browning through pH reduction
• Pat pretreated items dry before loading onto trays

Jerky Preparation:

• Select lean cuts of meat and trim all visible fat
• Slice thinly against the grain (1/4 inch or less), following best practices for slicing meat for jerky
• Marinate in a salt-based solution for 4-24 hours to build flavor before trying a variety of homemade jerky recipes for meat lovers
• Some methods require pre-heating meat to safe internal temperatures before drying , especially since dehydrators do not fully cook meat in the traditional sense

Loading the Trays:

• Use the included fruit roll-up sheet for purees and leathers
• Consider mesh inserts for small items like herbs or berries
• Leave adequate spacing—crowded trays lead to uneven results
• Heavier items on lower trays, lighter items above

Cleaning, Maintenance, and Storage

Regular cleaning after each use prolongs the life of your Magic Chef 469 1 and ensures food safety, helping you get the most from this versatile Magic Chef dehydrator for healthy snacks.

Cool-Down Protocol:

• Always unplug the unit after use
• Allow at least 30 minutes for complete cooling
• Never clean while the unit is warm or plugged in

Cleaning Trays and Lid:

• Wash in warm soapy water with a soft sponge
• Avoid abrasive pads that scratch transparent surfaces
• For stuck-on residue, soak in warm water before scrubbing
• Hand washing is recommended; check manual for dishwasher compatibility

Cleaning the Base Unit:

• Never immerse the base in water
• Wipe exterior surfaces with a slightly damp cloth
• Clean air vents gently to maintain unobstructed airflow
• Avoid getting moisture near the heating element or fan

Deep Cleaning (Periodic):

• Remove stubborn sugar deposits or jerky residue with extended soaking
• Check for lingering odors and air out components if needed
• Inspect trays for cracks or warping that could affect performance

Storage Guidelines:

• Dry all components completely before storing to prevent mold
• Stack trays neatly inside the base or separately
• Store in a clean, dry cabinet or shelf
• Wrap the power cord loosely—avoid tight bending

Troubleshooting and FAQs

This section addresses common Magic Chef 469 1 issues with practical solutions that most people can handle at home.

Dehydrator Will Not Turn On:

• Verify the outlet works by testing with another appliance
• Check that the plug is fully inserted
• Inspect household circuit breaker or fuse
• Confirm correct voltage (110V/120V depending on model version)

Uneven Drying Results:

• Avoid overloading trays beyond single-layer capacity
• Rotate trays every 2-3 hours during operation
• Cut food to uniform thickness before loading
• Reduce total load if waiting too long for results while applying troubleshooting tips for common dehydrator issues

Excessive Fan Noise:

• Check for misaligned trays or the top lid
• Remove any foreign objects that may have fallen into vents
• Allow unit to cool, then realign any shifted components
• Persistent abnormal sounds may indicate internal issues, in which case comparing with other home dehydrator models like Magic Mill units can help you decide if an upgrade is worthwhile

Strong Lingering Odors:

• Run an empty cycle with the lid off to air out
• Wash trays thoroughly after strong-smelling foods like jerky
• Store in a ventilated area between uses

Sticky Fruit That Won’t Fully Dry:

• Extend drying time and rotate trays more frequently
• Check that ambient humidity isn’t excessively high
• Slice pieces thinner for faster moisture removal

Case Hardening (Dry Outside, Moist Inside):

• This occurs when starting temperature is too high
• For fixed-temperature units, slice food thinner
• Rotate trays more frequently to balance heat exposure

When to Contact Service:

For smoke, burning smells, or complete fan failure, unplug immediately and contact authorized service. Do not attempt to open or repair the unit yourself.

Quick FAQs:

• Can I run the dehydrator overnight? Yes, many people do. Place on a heat-resistant surface away from anything flammable, and ensure good ventilation.
• How much noise should I expect? A gentle fan hum is normal. Loud rattling or grinding indicates a problem.

Contact and Support Information

For warranty claims, replacement parts, or repair questions, official Magic Chef support is your best resource.

Locating Official Support:

• Visit the Magic Chef brand website for current support page information
• Look for a customer service phone number on their contact page
• Some manufacturers offer email support or online contact forms
• Check your original packaging or documentation for included contact cards

Before Contacting Support:

• Have your model number (469 1) ready to provide
• Know your purchase date and retain proof of purchase
• Note any error symptoms or issues you’ve experienced

Warranty Information:

• Small kitchen appliances typically carry a 1-year limited warranty
• Verify current warranty terms on the official website
• Keep your receipt in a safe place for warranty claims

Important Reminders:

• Use only authorized replacement parts to maintain warranty coverage
• Seek service only from authorized centers
• Unauthorized repairs may void your warranty protection

With this guide and proper care, your Magic Chef 469 1 dehydrator should provide years of reliable food preservation. Read through the safety section one more time before your first batch, and don’t hesitate to contact support if you encounter issues beyond basic troubleshooting. Happy dehydrating!

Danny Content Writer

Hey there, since 2016, my mission has been to provide you with the information and guides you need to make food dehydrating simple and fun. Whether you're a newbie or a seasoned pro, my site offers helpful guides, reviews, and recipes to enhance your dehydrating experience. I take pride in only recommending products I believe in, ensuring my readers' trust. As an affiliate of various programs, including Amazon Associates, your support helps me continue providing quality content. Thanks for stopping by, and happy dehydrating!

See Full Bio

Food Dehydrator Product Reviewer How To Dehydrate Food Food Dehydrating Tips
